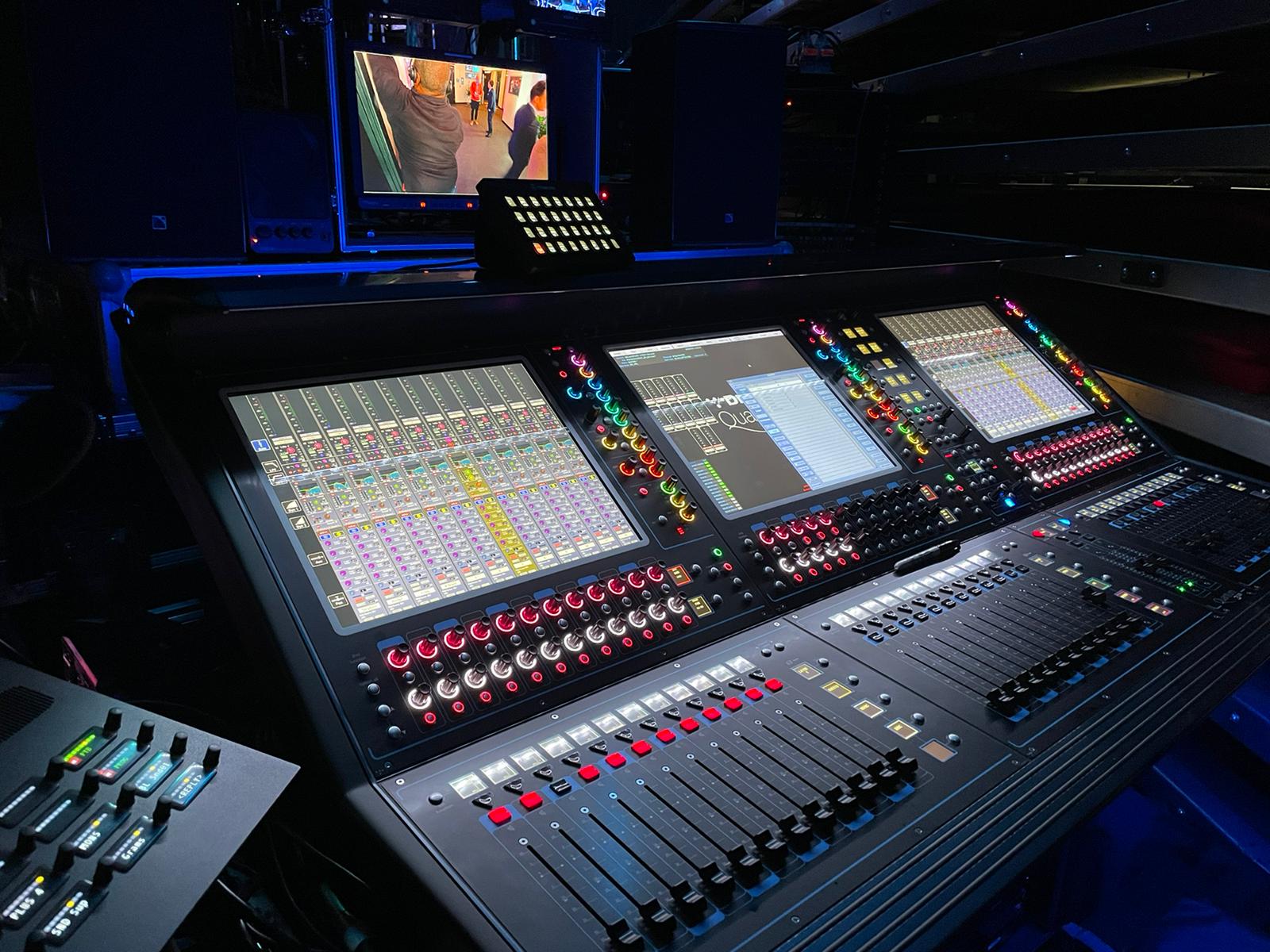

Quantum 338 & 225 represent a dramatic leap forward in power and connectivity within a remarkably compact format. They define the future of audio mixing by boasting a wealth of new design features and enhancements to create ultimate flexibility of use plus the speed of operation that only Quantum can deliver.

The consoles are based on seventh-generation FPGAs with entirely new system architecture. They merge tried and tested workflows with immense processing muscle and bold innovation including a striking new dark mode. With high brightness multitouch 17-inch screens at your disposal, the meter bridge and soft quick select buttons are displayed on each screen for quick, intuitive operation, all mounted on the floating Quantum chassis with touch-sensitive faders and dedicated user-assignable faders, each with high-resolution metering.

Quantum 338 standard is a superior local audio connectivity and performance, alongside:

• six single or three redundant MADI connections
• dual DMI slots
• a built-in UB MADI USB recording interface

With a maximum of 128 input channels with 64 busses and a 24 x 24 matrix, all with full channel processing, 8 local mic/line inputs and eight local line outputs, 4 stereo AES/EBU in/out, dual DMI card slots, support for dual second-generation Optocore loops, a built-in UB MADI USB interface and more, Quantum 338 takes built-in console I/O to new levels of performance.

Quantum 225, despite being a smaller format console, hasn’t made any sacrifices when it comes to connectivity.

• four single or two redundant MADI connections
• dual DMI slots
• a built-in UB MADI USB recording interface

With a maximum of 72 input channels with 36 busses and a 12 x 12 matrix, all with full channel processing, 8 local mic/line inputs and eight local line outputs, 4 stereo AES/EBU in/out, dual DMI card slots, support for dual second-generation Optocore loops, a built-in UB MADI USB interface and more, Quantum 225 may be the smaller brother, but it packs a mighty punch!

Remember the D5 Live? Well, the SD5 is the modern-day incarnation of that console; think the D5 Live on steroids and you’re getting close! Yes, it fits directly into the D5’s shoes, but thanks to the inclusion of Stealth Digital Processing, floating-point Super FPGA technology, and a host of new features, it packs a far bigger punch. The SD5’s 37 faders are laid out in three convenient banks of 12 with one master fader with the added benefit of three 15-inch full colour TFT touch screens for even quicker access and multi-user applications. In addition, there are two interactive dynamic metering displays (IDMs) as used in its big brother, the SD7. The centrally located master screen has been incorporated into the worksurface meterbridge design to provide a lower profile meter bridge and allow for complete user feedback; this means the engineer never needs to move far from mix position: there is clear visibility of everyone on stage, and all control is less than an arm’s length away.

The SD Ten includes many of our flagship SD7’s features and benefits, including Stealth Digital Processing and floating-point Super FPGA technology, and provides a fully-loaded feature set that will cater to any front-of-house or monitor engineer’s needs. SD Ten features three banks of 12 motorised faders and one master fader, each of which benefits from its own high resolution LED bar graph meter. In the centre of the worksurface sits the familiar 15-inch backlit colour-keyed TFT touch screen, home of the console’s super-intuitive control interface. In addition, special functions can be assigned and accessed instantly via the console’s 40 Smart Key Macros. The SD Ten boasts 96 processing channels (12 of these are Flexi Channels. The console also benefits from 16 Dynamic EQ processors, plus there are also 16 assignable Multiband Compressors and 16 assignable DiGiTubes. In addition, we’ve included 48 busses, all of which are assignable as mono/stereo groups or auxiliary busses, we’ve provided a 16 x 16 output matrix, dual solo busses, and a Master buss.

The SD11i provides the highest channel count per rack space of any high performance console available today: a full 80 input channels at 48kHz or 96kHz. Standard channel processing across all inputs and outputs includes Channel Delay, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo’s DYN 1 (Compressor, De-esser or Multi-Band Compressor) and DYN 2 (Gate, Compressor or Ducker).Regardless of how the console is set up, you’ll benefit from the power of 115 Dynamic EQ processors that are assignable to any of the input or output channels, offering dynamic processing on each of the four standard parametric bands, plus 115 Multiband Compressors. Whatever the gig, the SD11i delivers the same high quality signal path and feature set.The master section incorporates 12 gangable 32 band graphic EQs, six stereo effects (selectable from a palette of 33), and eight control groups (VCAs); using snapshots, you can switch between complete configurations in any live environment easier than ever before, be it at rehearsals, during system setup, or even at a show.In addition, 24 busses are assignable as mono/stereo groups or auxiliaries; while a 12×8 output matrix, dual solo busses, and a Master buss provide even deeper configurability.

Compact in size but big on features, the SD12 raises the bar as a multi-application digital console at an exceptionally affordable price point. Not only is the SD12 a true sonic powerhouse, it is the first in the SD-Range to feature an integrated recording interface which makes virtual sound checking a snap. Designed to provide optimum performance in live touring, corporate, install, house of worship, theatre and broadcast environments, the SD12 incorporates the latest generation Super FPGA technology and Core 2 software to deliver unrivalled power and connectivity in a compact frame. Designed for even easier operation, the SD12’s new DVI display output provides an overview of the console, while brighter LED meters and a DiGiCo Lightbar ensure optimum visibility. Dual 15-inch touchscreens, two assignable master faders and advanced surface connectivity is provided in the form of optional DMI cards.
